Name: Single row tapered roller bearings 4T-LM48548/LM48510 - NTN 90368-34001
Brand: Sale
SKU: LM48548
Price: 280.00 HKD
Availability: InStock

{{ isSelectedAllOptions ? presentmentCurrencyProductPriceRangeFormat(selected_product, 'original_price') : presentmentCurrencyProductPriceRangeFormat(product, 'original_price') }} {{ isSelectedAllOptions ? presentmentCurrencyProductPriceRangeFormat(selected_product, 'price') : presentmentCurrencyProductPriceRangeFormat(product, 'price') }}

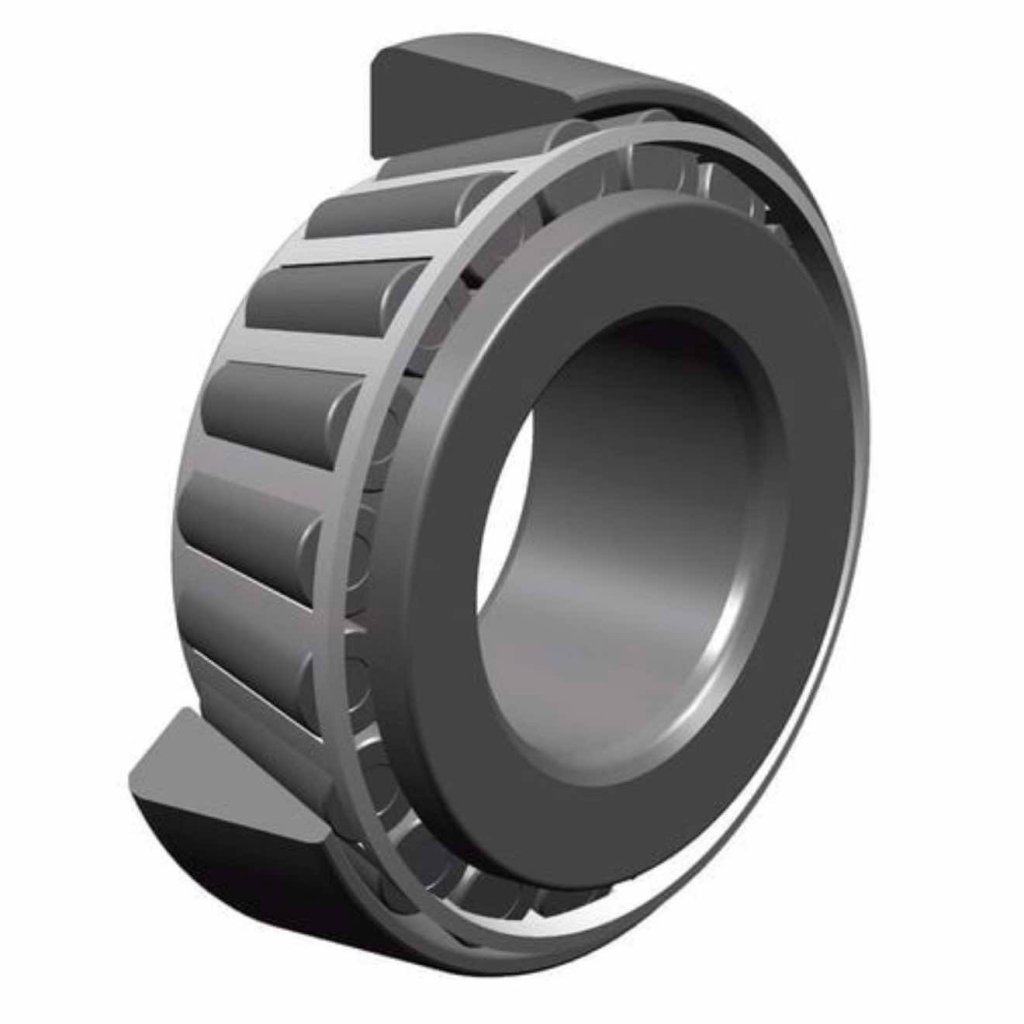

Single row tapered roller bearings 4T-LM48548/LM48510 - NTN

{{ group.name }} Required
{{ group.group_hints }}

銷售開始時間 : {{dateFormat(product.schedule_sell.pss_start_date, 'YYYY-MM-DD HH:mm')}} 銷售結束時間 : {{dateFormat(product.schedule_sell.pss_end_date, 'YYYY-MM-DD HH:mm')}}

描述

Single row tapered roller bearings 4T-LM48548/LM48510 - NTN

Product information

PRODUCT DEFINITION
Brand	NTN
d - Internal diameter	34,925 mm
D - External diameter	65,088 mm
B - Bearing/Inner ring width	18,288 mm
C - Outer ring width	13,97 mm
T - Total width	18,034 mm
d1 - External diameter inner ring	49,5 mm
a - Charge load application point	14,334 mm
Mass	0,25 kg

undefined

PRODUCT PERFORMANCE
C - Dynamic load	51,5 kN
C0 - Static load	56 kN
Cu - Fatigue limit load	6,8 kN
A2 - Rating life coefficient	1
e - Coefficient	0.38
Y0 - Static axial load coefficient	0.88
Y2 - Upper axial load coefficient	1.59
N lim - Oil lubrication limit speed	7600 tr/min
N lim - Grease lubrication limit speed	5700 tr/min
Tmin - Min operating temperature	-40 °C
Tmax - Max operating temperature	120 °C

ABUTMENT
da max - Max shoulder diameter IR	40 mm
db min - Min IR shoulder diameter	46 mm
Da max - Max shoulder diameter OR	58 mm
Db min - Min OR shoulder diameter	61 mm
ra max - Max fillet radius	3,94 mm
r1a - Max fillet radius	1,3 mm
